    SD Video Recorder Dash Cam DSM ADAS MAX 512G Support Remote Interconnection JT808 Protocol

    Ask Lasest Price
    Brand Name : Neutral
    Model Number : BK6MZHS
    Certification : CE, FCC, E-mark
    Price : Negotiable
    Supply Ability : 50000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    SD Video Recorder Dash Cam DSM ADAS MAX 512G Support Remote Interconnection JT808 Protocol

    The main advantages of installing a dash cam for drivers

    One of the big advantages of installing a dash cam is that it can deter reckless driving behavior. Studies have shown that vehicles equipped with dashcams can reduce road rage incidents by up to 50%. In addition, dash cams can also help protect drivers from false accusations; About 2% of drivers in the United States report that they are involved in an accident that they have been wrongfully charged. With video evidence, drivers can clear their name, potentially saving thousands of dollars in legal fees and higher insurance premiums.


    Legal Advantages of Dash Cams in Insurance Claims

    A dash cam can provide important evidence in the event of an accident, greatly aiding the insurance claims process. Video footage can serve as incontrovertible evidence of what happened during the collision, which can influence the outcome of the claim and help determine liability. In fact, according to the Insurance Information Institute, having dashcam footage can speed up the claims process by 30% or more. These clear records allow for a quicker settlement, allowing drivers to recoup their costs without lengthy disputes.


    How dash cams can improve road safety and awareness

    The presence of dash cams can promote safer driving behavior for drivers and their passengers. Statistics show that drivers equipped with dashcams are more likely to follow traffic laws, mainly because they realize that their actions are being recorded. In addition, many dashcams are equipped with features such as lane departure warning and collision warning, further improving road safety. As a result, dashcams help create a more vigilant driving environment and may reduce accident rates over time.


    Detailed description:

    1.Equipped with ABS and aluminum alloy housing, it is compact and can be glued directly to the front windshield with 3M adhesive. The connection is simple and convenient, and only 1/20 of the installation time of traditional terminals is required to complete the installation

    2.The whole machine has a high-reliability design, which can realize continuous monitoring in the environment of -30°C~75°

    3.The industrial-grade scheme and system design of the whole machine and the reliable electromagnetic compatibility design ensure the stable operation of itself and peripheral electronic equipment

    4.The structure of the whole machine has a good anti-dismantling and dust-proof design to ensure that the TF card, SIM card, antenna and connection port are not damaged

    5.The host can integrate AI video algorithms to realize ADAS functions. Extensible driving behavior analysis cameras enable driving behavior analysis

    6.1 audio input. Integrated high-sensitivity MIC can record in-car audio and support voice intercom

    7.The host has an integrated speaker, which can carry out audio broadcast and early warning prompts

    8.The host integrates 3 status indicators, which can observe the working status of the equipment in real time

    9.Equipped with 1 alarm button (SOS), support alarm button, emergency alarm trigger to capture pictures

    10.Support GPS/BD positioning module to achieve speed, location, time and route management. Support abnormal positioning module and antenna abnormal alarm

    11.It supports the departure of navigation routes and the entry and exit alarms of the area, and the device can save up to 16 routes and areas

    12.Integrated 4G full Netcom communication module, remote monitoring and management can be realized

    13.Built-in G-SENSOR module, which can realize automatic alarm upload of abnormal vibration, rollover, impact and emergency braking; The G-SENSOR supports the vibration wake-up function, and the sentry capture function can be realized with the quick start

    14.Integrated WIFI module, support AP mode. In AP mode, you can use the O&M app connection for debugging and maintenance

    16.9V~36V adaptive wide voltage input, ultra-low power consumption. Support reverse polarity protection, over-voltage, over-current and overload protection, and optional 5V power output

    17.Professional and reliable file system to ensure the accuracy and stability of video data and storage media

    18.It supports TF card storage, a maximum of 512G for a single card, and supports hot swapping

    19.4 alarm inputs (3 optional), optional: 2 alarm outputs; Optional: 1 channel RS232, support extended serial port;

    20.It supports TTS voice function, which can realize TTS scheduling and broadcasting in Chinese and English

    21.Delay shutdown function, delay time can be set

    22.It can realize ultra-low power consumption, and the positioning position can continue to be reported; Keep your location updated

    23.Ultra-low power consumption design, less heat generation, fast start-up! The professional platform software can realize the remote monitoring and management function of computer and mobile phone


    Parameters

    Basic parametersOperating systemLinux
    Network type4G TDD-LTE, FDD-LTE/Full Netcom
    Memory capacity1Gb

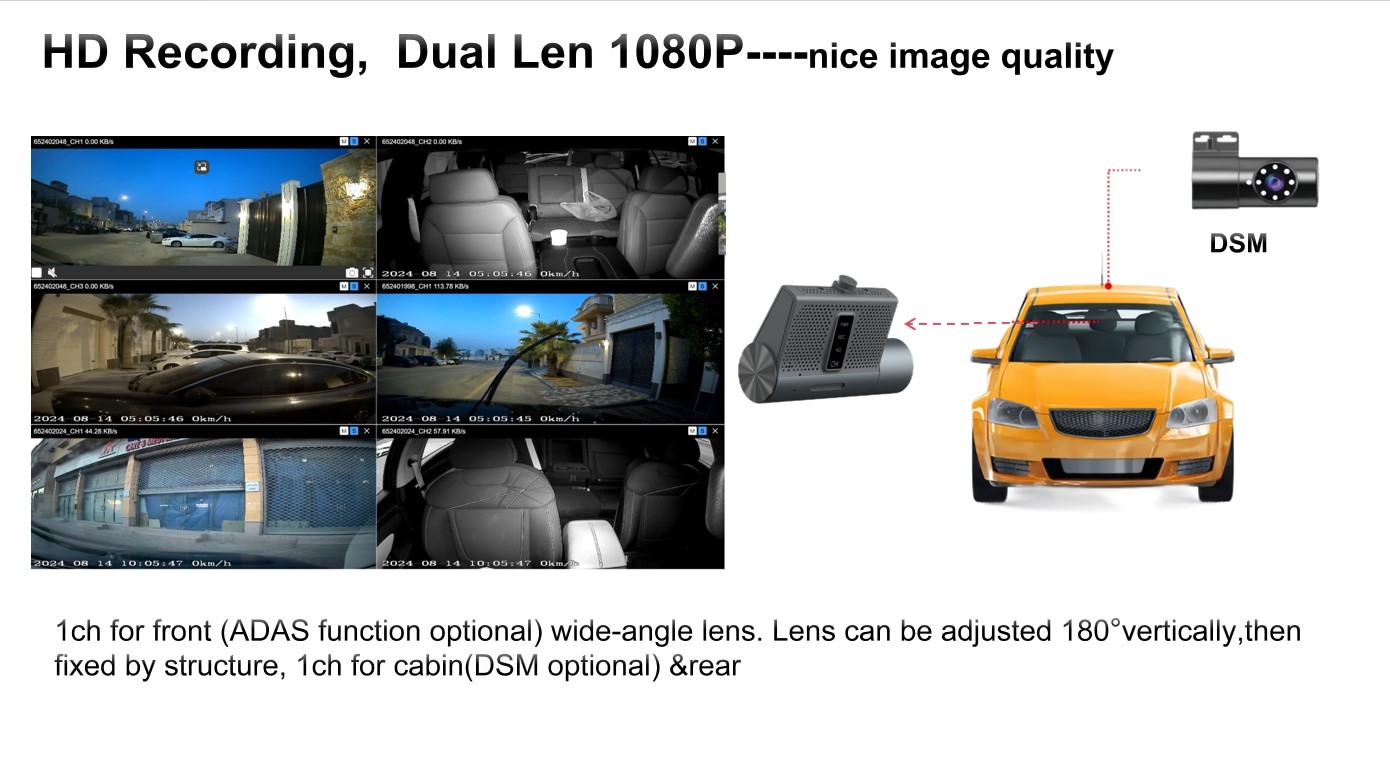

    Integrated cameraFront HD 1080P camera
    Infrared HD 1080P cabin camera
    External cameraHD 1080P camera
    Hardware functionGPS

    Dual-mode positioning, support GPS+Beidou; Positioning accuracy≤ 10m (95% probability);

    Support single Beidou positioning; Single-frequency dual-frequency Beidou is optional

    Positioning time, hot start≤ 5s, cold start≤45s
    WiFi(Optional)2.4G;IEEE 802.11b/g/n
    Speaker8 Ω 1W, voice cavity
    MICSingle microphone, supports echo and noise cancellation
    G-sensor3-axis gravity acceleration sensor
    Loop noise cancellationCompatible with hardware loop noise cancellation
    3G/4G NetworkModule band

    LTE-TDD :B34/B38/B39/B40/B41

    LTE-FDD :B1/B3/B5/B8

    Module type3G/4G wireless transmission, TDD-LTE, FDD-LTE
    Supporting protocolSupport UDP,TCP/IP protocol
    SMS serviceSMS
    Transmit power

    LTE-FDD B1/B3/B5/B8 < -39 dBm

    LTE-TDD B34/B38/B39/B40/B41 < -39 dBm

    PortsAviation plugSupport aviation plug extension 3 channel video
    SIM card holderSIM Card Holder *1 (medium card)
    TF card holderTF card holder for video recording
    Communication Interface1CH RS232 serial port (Optional)
    Can(Optional)Can expandable
    Networt portNetwork port is optional and expandable
    Alarm inputDefault 1 channel IO alarm input + 3 channels IO alarm input are optional
    Alarm output (optional)2 channels (5V) switching output, linkage sound and light alarm, oil and power cut-off, etc
    Light/buttonIndicator light3 status lights
    Alarm functionSOS button, support external emergency alarm button
    AntennaBD/GPS antennaExternal antenna
    4G antennaBuilt-in antenna
    WIFI antennaBuilt-in antenna
    ShutdownACC modeAfter ignition off, device off.
    Delay shutdownAfter the ignition is turned off, the time is delayed to the set time. Turn off the device

    Low-power

    sleep mode

    In low-power sleep mode, position information is periodically transmitted.
    Power SupplyDC input9-36V wide voltage input
    Working current12V 0.26A(infrared on)
    Low power mode12V 0.07A (Ignition reporting location data)
    OtherOperating temperature-30℃-75℃
    Storage temperature-40℃-85℃
    Dimensions weight (length * width * height)125mm*62.5mm*41.5mm
