Shenzhen Richmor Technology Development Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Richmor |
| Model Number : | BK6M-B |
| Certification : | ce |
| Price : | $155.00/pieces 5-99 pieces |

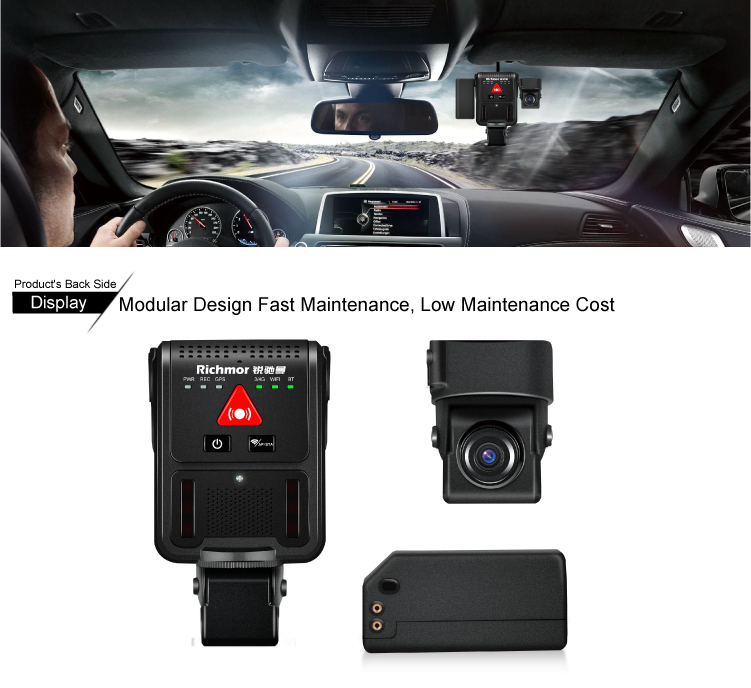

Richmor Factory Direct Sell car black box mini all-in-1 2CH AHD GPS 4G MDVR dash cam for taxi bus truck
| PRODUCT DESCRIPTION | |
| Resolution | 2X 720P AHD Full real-time recording |
| Storage | Support 2X SD cards storage, up to 128GB for each |
| Alarm I/O | 2CH Alarm input, 3CH Alarm output |
| ACC Delay | 10 seconds delay pow-off for data protection |
| Voltage | 8V-36V Wide range voltage power supply |
***Battery is optional. If needed, add USD30/P.
Cabin View Camera
Support Infrared Night Vision Function.
Monitoring angles can be adjusted (45°vertical direction & 335°horizontal direction adjusting ). Horizontal field of view can reach 150°. Angles cannot be adjusted after installation finished in order that the monitoring site cannot be destroyed.
Front View Camera
Front view camera can adjust 45°up and down . Horizontal field of view can reach 130°. Angles cannot be adjusted after installation finished in order that the monitoring site cannot be destroyed.
Detailed specification was listed as follows for checking, please contact us we'll do our best to cooperate.
Item | Parameter | |||
OS | Linux | |||
Language | Chinese/English/Others(can be customized) | |||
Video Compression | H.264 | |||
Operation Interface | OSD menu | |||
Video Record System | Video Input | Support 2 CH(1 CH built-in ,1 CH External) 720P AHD Video Input | ||
Video Output | 1CH AV output | |||
Display | Support 1/2/4 CH full screen preview | |||
Signal system | PAL/NTSC (PAL 100Frame, NTSC 120 Frame | |||
Resolution | Support 1080P/720P/D1/CIF, MAX:2CH 1080P | |||
Record Format | Synchronized A/V recording | |||
Audio | Audio Input | 2 CH(1 CH built-in ,1CH External) | ||
Compression | G.726 | |||
Alarm | Input | 4CH level Alarm Input | ||
Output | 1 CH | |||
Storage | Max support 2X128GB SD Card | |||
Communication Port | 1CH RS232 / 1CH RS485 | |||
G-sensor | Built in, support 3 Axis Motion Detection with user set ranges , for X,Y and Z coordinates | |||
Wireless communications | GPS/4G | |||
GPS | GPS | |||
Video Playback | Video Search | Search video by Record Time/ Type etc | ||
Playback | A/V,GPS,Mapview,Speed,G-sensor,video files available for playback on PC. | |||
CMS | Wireless(require Wi-Fi or cellular), real-time monitoring .GPS and alarm etc | |||
Operating Voltage | Voltage Input | 8V ~ 36V DC | ||
Voltage Output | 12V 1.2A 4 CH, with IR | 12V 0.9A 2 CH, with IR | ||
Power -off Protection | All video information can be saved automatically when the power cut off, and make sure that all the files can not be damaged | |||
UPS | External UPS battery optional, support 24 hours monitoring | |||
Other | Operation Temperature | - 20℃ ~ + 70℃ | ||
Humidity | 20% ~ 80% | |||
Dimension | 150*125*45mm | |||
Weight | 0.5 KG | |||
