Shenzhen Richmor Technology Development Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Richmor |
| Model Number : | RCM-MDR7208-008 |
| Price : | $186.00/pieces 2-49 pieces |
Richmor Factory Direct Sell 8 Channel 1080P AHD HD Hard Disk Storage Vehicle Mobile DVR 3G 4G GPS Wifi optional
| PRODUCT DESCRIPTION | |
| Resolution | 8X 1080P AHD Full real-time recording |
| Moduel | G-Sensor built in, GPS /3G/4G /WIFI Optional |
| Storage | Support 1X2TB Hard disk+ 1X128 GB SD card |
| Alarm I/O | 8CH Alarm input, 2CH Alram output |
| ACC Delay | 10 seconds delay pow-off for data protection |
| Voltage | 6V-36V Wide range voltage power supply |
Detailed specification was listed as follows for checking, please contact us we'll do our best to cooperate.
Item | Parameter | |||
OS | Linux | |||
Language | Chinese/English/Others(can be customized) | |||
Video Compression | H.264 | |||
OSD | Overlays information such as date time and vehicle ID | |||
Video Record System | Video Input | Support 8 CH Full real-time AHD 1080P | ||
Video Output | 2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω | |||
Preview | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview | |||
Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |||
Resolution | Support 4CH Full real-time AHD 1080P | |||
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |||
Audio | Audio Input | 4CH | ||
Audio Output | 2CH | |||
Compression | G.726 | |||
Alarm | Input | 8CH | ||
Output | 2CH | |||
Storage | Up to 2TB HDD & 128GB SD Card | |||
Communication Port | 3CH RS232 / 2CH RS485 | |||
G-sensor | Built in, support 3 Axis Motion Detection with user set ranges , for X,Y and Z coordinates | |||
Wireless communications | GPS /3G /4G /WIFI optional | |||
GPS | Support Built GPS/BD Module,can support the ministry of communications | |||
Video Playback | Video Search | Search video by Record Time/Type etc | ||
Playback | Max support 8CH Replay /Stop/Fast Forward/Fast Reverse at same time | |||
CMS | Wireless(require Wi-Fi or cellular), real-time monitoring .GPS and alarm etc | |||
Operating Voltage | Voltage Input | 8V ~ 36V DC | ||
Voltage Output | 12V 2.5A | 5V 2.5A | ||
Power -off Protection | All video information can be saved automatically when the power cut off, and make sure that all the files can not be damaged | |||
Power Consumption | Normal Working <10W | |||
Other | Operation Temperature | -20℃ ~ + 70℃ | ||
Humidity | 20% ~ 80% | |||
Dimension | 200*187*62mm | |||
Weight | 1.9KG | |||

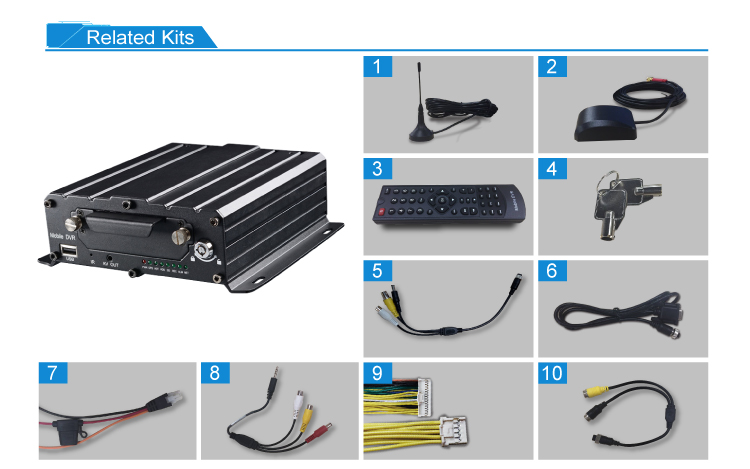

| RCM-MDR7104 | ||
| a. Remote controller*1 | b. 6PIN power cable*1 | c. 16PIN output*1 |
| d. 24PIN alarm cable*1 | e. VGA switching cable(6 pin)*1 | f. USB cable*1 |
| g. 4G antenna | h. GPS antenna | i. WIFI antenna |
