Shenzhen Richmor Technology Development Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Richmor |
| Model Number : | MDR7204-D |
| Certification : | CE.ROHS.FCC |
| Supply Ability : | 5000 Piece/Pieces per Month |
| Price : | $115.00 - $215.00/pieces |

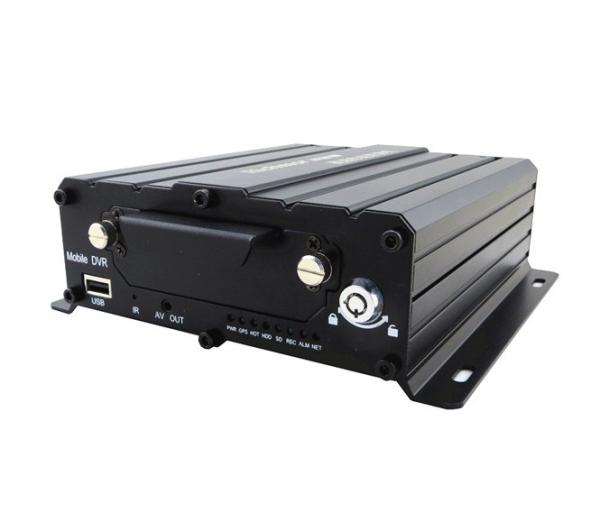

Richmor High-Quality 4 Channel AHD 1080P MDVR HDD GPS 3G/4G WIFI Vehicle Mobile DVR for truck bus car
| PRODUCT DESCRIPTION | |
| Resolution | 4X 10800P AHD Full real-time recording |
| Moduel | G-Sensor built in, GPS /3G/4G /WIFI Optional |
| Storage | Support 1X2TB Hard disk+ 1X128 GB SD card |
| Alarm I/O | 8CH Alarm input, 2CH Alram output |
| ACC Delay | 10 seconds delay pow-off for data protection |
| Voltage | 8V-36V Wide range voltage power supply |
Main Features:
Detailed specification was listed as follows for checking, please contact us we'll do our best to cooperate.
Item | Parameter | |||
OS | Linux | |||
Language | Chinese/English/Others(can be customized) | |||
Video Compression | H.264/H.265 | |||
GUI | Can connect to external LED screen. Setup system parameters with the remote control. | |||
Video Record System | Video Input | Support 4 CH Full real-time AHD 1080P | ||
Video Output | 2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω | |||
Preview | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview | |||
Signal system | PAL/NTSC (PAL 100Frame, NTSC 120 Frame) | |||
Resolution | Support 1080P/720P/D1/CIF, MAX:4 channels 1080P | |||
Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~4Mbps, multi levels video quality optional; 1080P: multi levels video quality optional; | |||
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |||
Audio | Audio Input | 8CH, Aviation Plug | ||
Audio Output | 2CH, Front port is earphone port ,rear port connects to BNC connector. | |||
Compression | G.726 compression, 8KB/s speed | |||
Alarm | Input | 7CH IO Alarm Input, 1CH AD input, pulse speed input; Support alarm linkage function | ||
Output | 2CH power on/off Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc | |||
Storage | Up to 2TB HDD&128GB SD Card | |||
Communication Port | 3CH RS232 / 1CH RS485 / 2CH CAN | |||
G-sensor | Built in, support 3 Axis Motion Detection with user set ranges , for X,Y and Z coordinates | |||
Wireless communications | GPS /3G /4G /WIFI optional | |||
GPS | GPS /Glonass | |||
Video Playback | Video Search | Search video by Record Time/Type etc | ||
Playback | Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time | |||
Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
Operating Voltage | Voltage Input | 8V ~ 36V DC | ||
Voltage Output | 12V 1.2A | 5V 2.5A | ||
Power Management | Adaptive wide power input, support Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection..Support Time Setting/Delay power off | |||
Power Consumption | Normal Working <10W | |||
Other | Operation Temperature | -20℃ ~ + 70℃ | ||
Humidity | 20% ~ 80% | |||
Dimension | 200*187*62mm | |||
Weight | 1.9KG | |||
| RCM-MDR7204 | ||
| a. Remote controller*1 | b. 6PIN power cable*1 | c. 16PIN output*1 |
| d. 24PIN alarm cable*1 | e. VGA switching cable(6 pin)*1 | f. USB cable*1 |
| g. 4G antenna | h. GPS antenna | i. WIFI antenna |
|
|
